Min Guaranteed QE Specs at –20C, for CCD47-20 devices

	Enhanced UV	Standard BB	Enhanced BB	Standard midband
Nm	%	%	%	%
300	45	-	-	-
350	45	25	50	15
400	55	55	80	40
500	60	75	80	85
650	60	75	75	85
900	30	30	30	30

Device Type	47-20-x-350	47-20-x-331	47-20-x-347	47-20-x-339

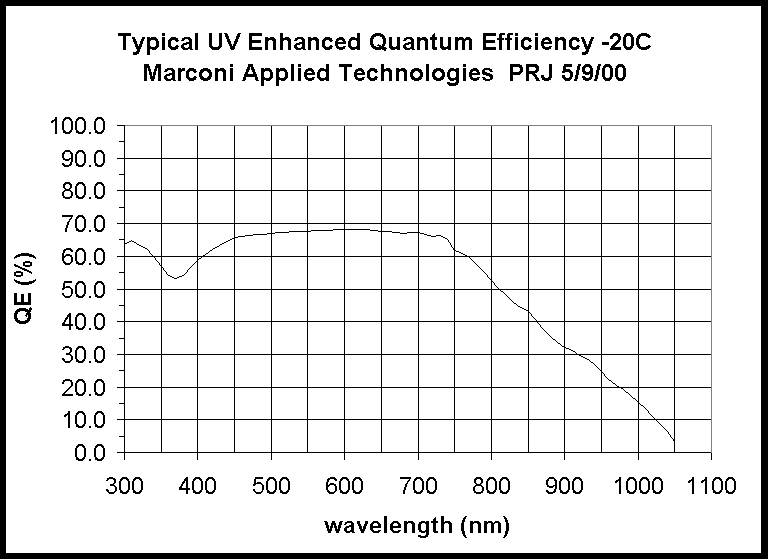

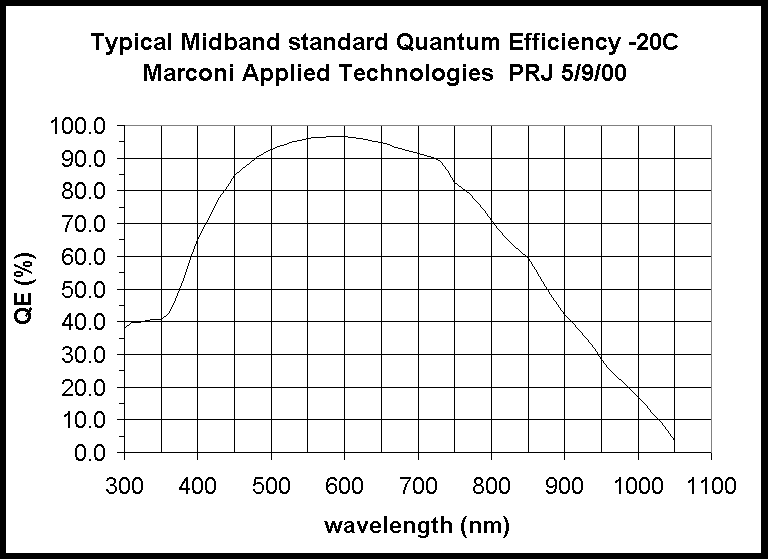

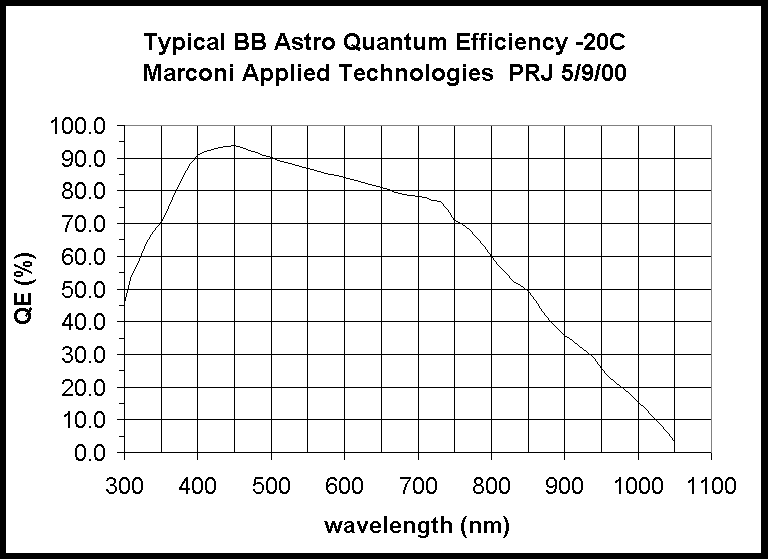

Data tables for above graphs, received from Paul Jorden on 06/02/2001. Note that these are just models and the delivered chips may differ a bit. Note also that the models are for 253K, whereas we will be using the chips at 233K. This means we will see a drop of a couple of per cent in QE, but no real change in shape (according to Paul). The excel spreadsheet from which the table below has been formed can be found here.

-20C models
PRJ Marconi Applied Technologies

06. Feb 01

for Ultracam

coating: Mid BB UV

part no: 47-20-x-339 47-20-x-347

nm QE QE QE

300 38.0 45.8 63.6

310 39.6 54.2 65.0

320 39.6 59.1 63.3

330 40.3 64.2 62.2

340 40.6 67.7 59.9

350 40.7 70.6 56.7

360 42.5 74.8 54.2

370 46.7 79.8 53.3

380 52.8 84.7 54.2

390 59.4 88.4 56.6

400 65.1 90.7 58.9

410 69.8 92.0 60.6

420 74.1 92.8 62.1

430 78.0 93.3 63.4

440 81.4 93.6 64.5

450 84.6 93.9 65.6

460 86.7 93.2 66.0

470 88.5 92.4 66.3

480 90.1 91.7 66.6

490 91.4 90.9 66.8

500 92.6 90.2 67.1

510 93.5 89.4 67.2

520 94.3 88.7 67.3

530 95.0 88.1 67.5

540 95.5 87.4 67.6

550 95.9 86.7 67.7

560 96.3 86.2 67.9

570 96.5 85.6 68.0

580 96.5 85.0 68.0

590 96.7 84.6 68.2

600 96.6 84.0 68.2

610 96.4 83.4 68.2

620 96.0 82.8 68.1

630 95.7 82.2 68.0

640 95.2 81.6 67.9

650 94.7 81.0 67.7

660 94.1 80.3 67.5

670 93.4 79.6 67.3

680 92.6 78.9 67.1

690 92.0 78.6 67.2

700 91.5 78.3 67.1

710 91.0 77.9 66.7

720 90.3 77.2 66.1

730 89.1 76.8 66.4

740 86.3 74.4 65.1

750 82.4 70.8 61.9

760 80.9 69.6 61.0

770 79.1 68.1 59.6

780 76.8 65.7 57.6

790 74.0 62.9 55.2

800 71.1 60.0 52.7

810 68.2 57.2 50.3

820 65.5 54.6 47.9

830 63.4 52.4 45.8

840 61.5 50.9 44.5

850 59.2 49.2 43.0

860 56.1 46.6 40.8

870 52.3 43.2 38.0

880 48.5 40.1 35.4

890 45.2 37.8 33.8

900 42.3 35.8 32.1

910 39.8 34.3 31.1

920 37.3 32.6 29.7

930 34.7 31.0 28.8

940 31.8 28.7 27.1

950 28.5 25.8 24.6

960 25.7 23.3 22.4

970 23.3 21.2 20.5

980 21.4 19.5 19.2

990 19.2 17.6 17.4

1000 16.8 15.4 15.3

1010 14.6 13.4 13.5

1020 12.0 10.9 11.0

1030 9.4 8.5 8.5

1040 6.6 6.1 6.3

1050 3.5 3.2 3.4

-20C models		PRJ	Marconi Applied Technologies	06. Feb 01
for Ultracam

coating:	Mid	BB	UV
part no:	47-20-x-339	47-20-x-347

nm	QE	QE	QE
300	38.0	45.8	63.6
310	39.6	54.2	65.0
320	39.6	59.1	63.3
330	40.3	64.2	62.2
340	40.6	67.7	59.9
350	40.7	70.6	56.7
360	42.5	74.8	54.2
370	46.7	79.8	53.3
380	52.8	84.7	54.2
390	59.4	88.4	56.6
400	65.1	90.7	58.9
410	69.8	92.0	60.6
420	74.1	92.8	62.1
430	78.0	93.3	63.4
440	81.4	93.6	64.5
450	84.6	93.9	65.6
460	86.7	93.2	66.0
470	88.5	92.4	66.3
480	90.1	91.7	66.6
490	91.4	90.9	66.8
500	92.6	90.2	67.1
510	93.5	89.4	67.2
520	94.3	88.7	67.3
530	95.0	88.1	67.5
540	95.5	87.4	67.6
550	95.9	86.7	67.7
560	96.3	86.2	67.9
570	96.5	85.6	68.0
580	96.5	85.0	68.0
590	96.7	84.6	68.2
600	96.6	84.0	68.2
610	96.4	83.4	68.2
620	96.0	82.8	68.1
630	95.7	82.2	68.0
640	95.2	81.6	67.9
650	94.7	81.0	67.7
660	94.1	80.3	67.5
670	93.4	79.6	67.3
680	92.6	78.9	67.1
690	92.0	78.6	67.2
700	91.5	78.3	67.1
710	91.0	77.9	66.7
720	90.3	77.2	66.1
730	89.1	76.8	66.4
740	86.3	74.4	65.1
750	82.4	70.8	61.9
760	80.9	69.6	61.0
770	79.1	68.1	59.6
780	76.8	65.7	57.6
790	74.0	62.9	55.2
800	71.1	60.0	52.7
810	68.2	57.2	50.3
820	65.5	54.6	47.9
830	63.4	52.4	45.8
840	61.5	50.9	44.5
850	59.2	49.2	43.0
860	56.1	46.6	40.8
870	52.3	43.2	38.0
880	48.5	40.1	35.4
890	45.2	37.8	33.8
900	42.3	35.8	32.1
910	39.8	34.3	31.1
920	37.3	32.6	29.7
930	34.7	31.0	28.8
940	31.8	28.7	27.1
950	28.5	25.8	24.6
960	25.7	23.3	22.4
970	23.3	21.2	20.5
980	21.4	19.5	19.2
990	19.2	17.6	17.4
1000	16.8	15.4	15.3
1010	14.6	13.4	13.5
1020	12.0	10.9	11.0
1030	9.4	8.5	8.5
1040	6.6	6.1	6.3
1050	3.5	3.2	3.4
